AIRVIB© Wireless Balancing System for UAV , Drone, Ultralight Aircraft and Fixed Wings
Selling Prices:
• AIRVIB Kit Heli-1: RMB 160,000.00
• AIRVIB Kit Heli-2: RMB 180,000.00
AIRVIB© Kit Heli-1 / Kit Heli-2
- Wireless communication up to 3.5Km (2.5 miles)
- Drone / Helicopter track & balance
- Dynamic balancer 4 channels
- Track measurement up to 12 blades
- Spectrum analysis 8 channels
- Automatic weight sensitivity correction
- Chinese User’s Interface
- EU/UK Certified
AIRVIB®
The AIRVIB Kit Heli-1 / Kit Heli-2 systems consist of an Acquisition Unit( to be installed in the UAV ultra light aircraft in flight to which various sensors are connected to) , and a Display Unit ( which remains on the ground controlled by an operator). This lightweight and wireless system allows the recording, processing and interpretation of all vibratory signals generated in flight to meet all your needs Its quick and punctual installation allows the use of a single system for a full fleet of aircraft, thus optimizing costs.
The track measurement on a rotary wing makes it possible to visualize and adjust the positions of the blades The universal tuning program offers balancing solutions for all types of flying models.
Key System Benefits and Features
Remote vibration analysis on the Drone UAV VTOL ULA in flight with a maximum range of 3.5 km (2.5 mi) Designed to analyze and tune fixed and rotating wing aircraft as well as multi rotor.

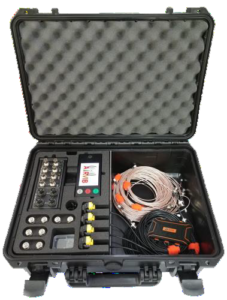

Affordable system delivered complete with all its accessories Supplied in a rugged, compact and lightweight carrying case.
Modern technology with a color screen, choice of measurement units and language, battery charge with USB C port and SD card for backup.
Complies with European industry standards relating to electromagnetic disturbances and radio spectrum.
AIRVIB® ACQUISITION UNIT
• 4 Tachymeter channels
• 8 Accelerometer channels
• USB-C Connector
• Weight : 500g
AIRVIB® DISPLAY UNIT
• LCD Color screen
• Chinese/English Interface
• Easy to use interface
• Saving data on SD card
• Weight : 260g

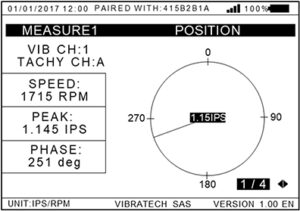

 Dynamic balancing on 4 channels simultaneously |
 Calculation and proposal of balancing solutions |

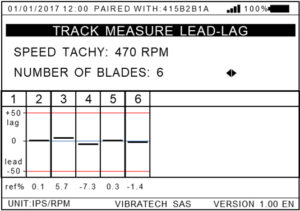

 Track measurement for height and lead/lag |

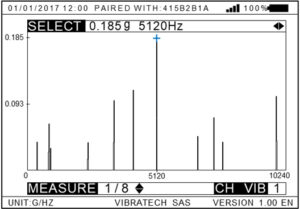

 Spectrum analysis configurable on 8 channels |
AIRVIB® EC Certification
AIRVIB® UK/CA Certification

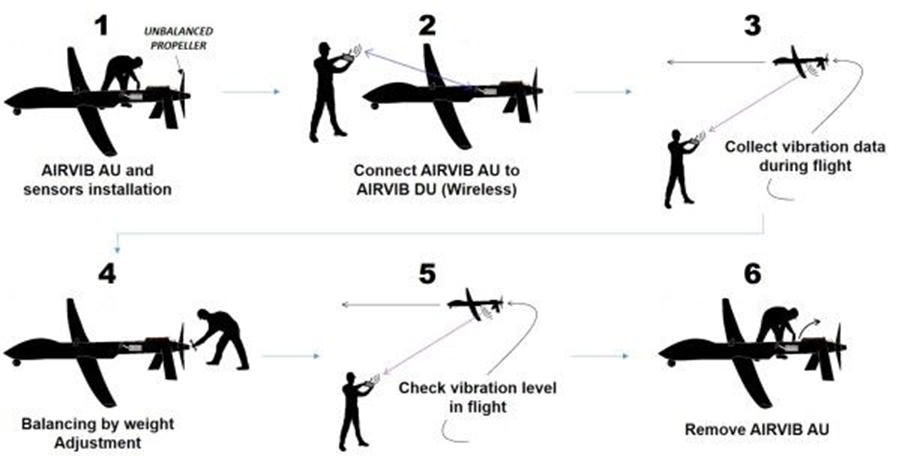

AIRVIB® BALANCING PROCESS

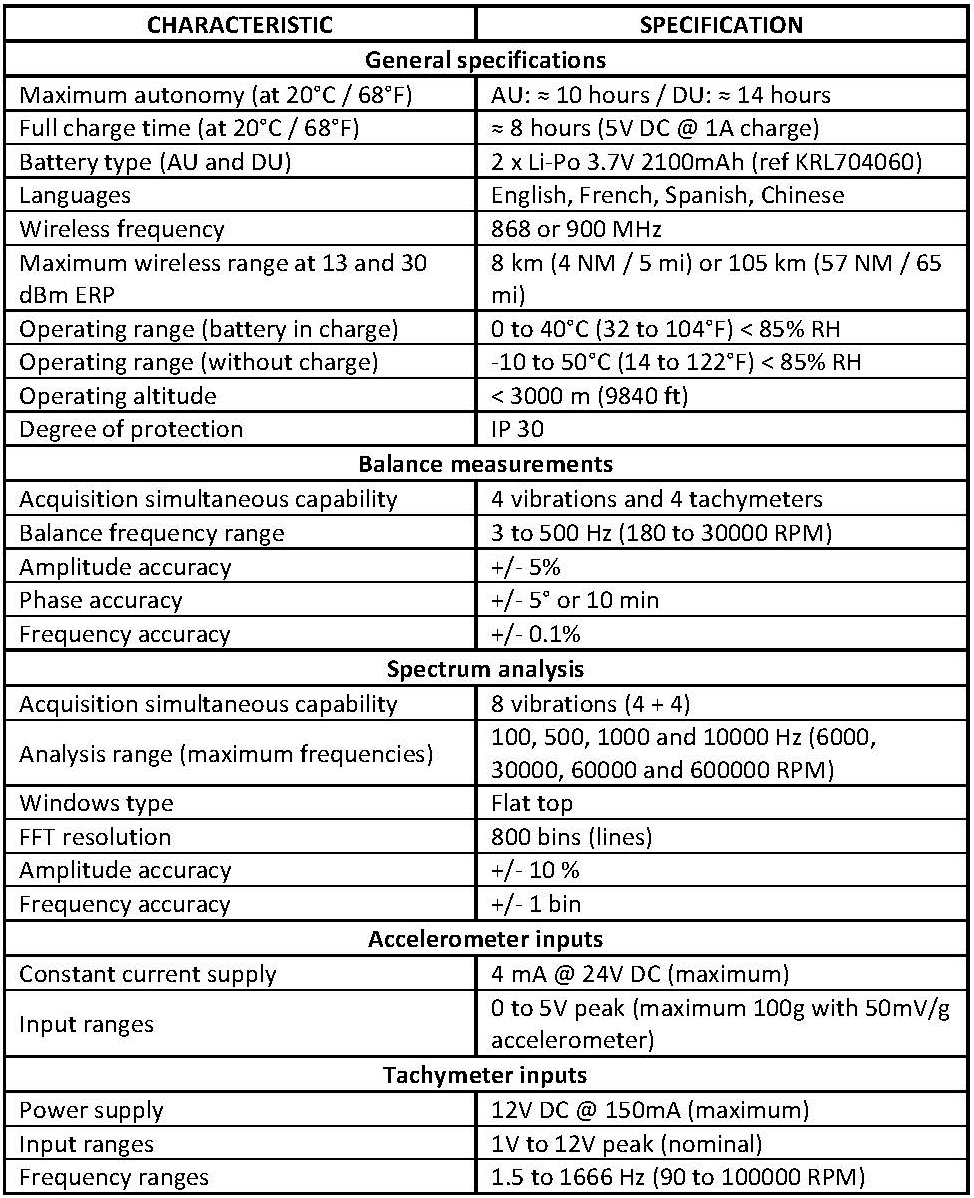

AIRVIB® Specifications |
| CHARACTERISTIC | SPECIFICATION |
| General specifications | |
| Maximum autonomy (at 20°C / 68°F) | AU: ≈ 10 hours / DU: ≈ 14 hours |
| Full charge time (at 20°C / 68°F) | ≈ 8 hours (5V DC @ 1A charge) |
| Battery type (AU and DU) | 2 x Li-Po 3.7V 2100mAh (ref KRL704060) |
| Languages | English, French, Spanish, Chinese |
| Wireless frequency | 868 or 900 MHz |
| Maximum wireless range at 13 and 30 dBm ERP | 3.5 km (2 NM / 2.5 mi) |
| Operating range (battery in charge) | 0 to 40°C (32 to 104°F) < 85% RH |
| Operating range (without charge) | -10 to 50°C (14 to 122°F) < 85% RH |
| Operating altitude | < 3000 m (9840 ft) |
| Degree of protection | IP 30 |
| Balance measurements | |
| Acquisition simultaneous capability | 4 vibrations and 4 tachymeters |
| Balance frequency range | 3 to 500 Hz (180 to 30000 RPM) |
| Amplitude accuracy | +/- 5% |
| Phase accuracy | +/- 5° or 10 min |
| Frequency accuracy | +/- 0.1% |
| Spectrum analysis | |
| Acquisition simultaneous capability | 8 vibrations (4 + 4) |
| Analysis range (maximum frequencies) | 100, 500, 1000 and 10000 Hz (6000, 30000, 60000 and 600000 RPM) |
| Windows type | Flat top |
| FFT resolution | 800 bins (lines) |
| Amplitude accuracy | +/- 10 % |
| Frequency accuracy | +/- 1 bin |
| Accelerometer inputs | |
| Constant current supply | 4 mA @ 24V DC (maximum) |
| Input ranges | 0 to 5V peak (maximum 100g with 50mV/g accelerometer) |
| Tachymeter inputs | |
| Power supply | 12V DC @ 150mA (maximum) |
| Input ranges | 1V to 12V peak (nominal) |
| Frequency ranges | 1.5 to 1666 Hz (90 to 100000 RPM) |
