Cost-effective emergency start battery with superior performance.

  • StartStick has designed a cutting edge and ultra lightweight portable 28V emergency start battery with built-in NATO connector. The StartStick portable power unit is powered with high-power Li-Ion (“Nanophosphate”) cells
  • Two model: SS28V9A & SS28V14A

Download the product’s brochure Here

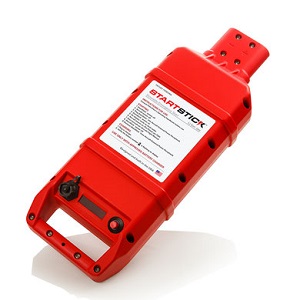

StartStick

Model SS28V9A

The StartStick, weighing just 10 lbs, is the first-ever portable start battery lightweight enough to carry on every flight. It weighs less than 2 gallons of fuel. The SS28V9A model is ideal for emergency start purposes or for light-duty ramp use such as for standby power for avionics maintenance.

Features:


* Shipping Lithium Batteries UNDOT 38.3 Certified
* 120/220V 50/60hz Battery Charger
* Lightweight and Powerful Lithium Nano-Phosphate cells with state-of-the-art battery monitoring and · protection circuitry
* Integrated, fully automatic battery charger can attach to any on-board auxiliary power supply
* Integrated multi-function display for monitoring State-of-Charge, diagnostics and other parameters
* Fiber-reinforced polymer case for maximum durability and toughness
* Optional power supply converts StartStick into a 20amp GPU



Other Details:


* Capacity: 9.8Ahr
* Max Current (10 sec limit): 480 amps
* Max Current (continuous): 200 amps
* Short Circuit Detection: 1350 amps
* Short Circuit (Protection Off, Instantaneous): 25,800 amps

Applications (StartStick 9Ah):



Manufacturer Model Engine
Robinson R66 RR300
Bell OH-xx C-18
206 C-20x
206Lx C-30x
MD 500x C-20x
520x C-20x
530x C-30x
Eurocopter AS350Bx 1B
AS350B1-2 1D
AS350B3e 2D
EC130-T2 2D
